Network overview
This is a picture of the PC network at home. The hardware is spread between the livingroom and a desk in the attic and a spare room.
It comprises PC and networked hometheatre equipment.

Network schematic showing vlan separation

4 ethernet cables are used to connect the 4 rooms with each other. The 4 switches are connected in a ring topology. Vlan seperation ensures all cables are utilized fully and no loops occur.



See the other tabs on this page for a description of the various parts.

Click here for a nice tutorial for wiring UTP

Networking equipment

3x Engenius EWS276AP FIT Accespoint Wifi AP system EnGenius Fit 802.11ax 4×4 Dual Band Managed Indoor Wireless Access Point
Netgear gs110emx 10 port vlan managed switch with 2x 10Gbe ports and 8x 1Gbps
HPE 1950-24G-2SFP+-2XGT 28 port vlan managed switch with 4x 10Gbe ports HP code : JG960A

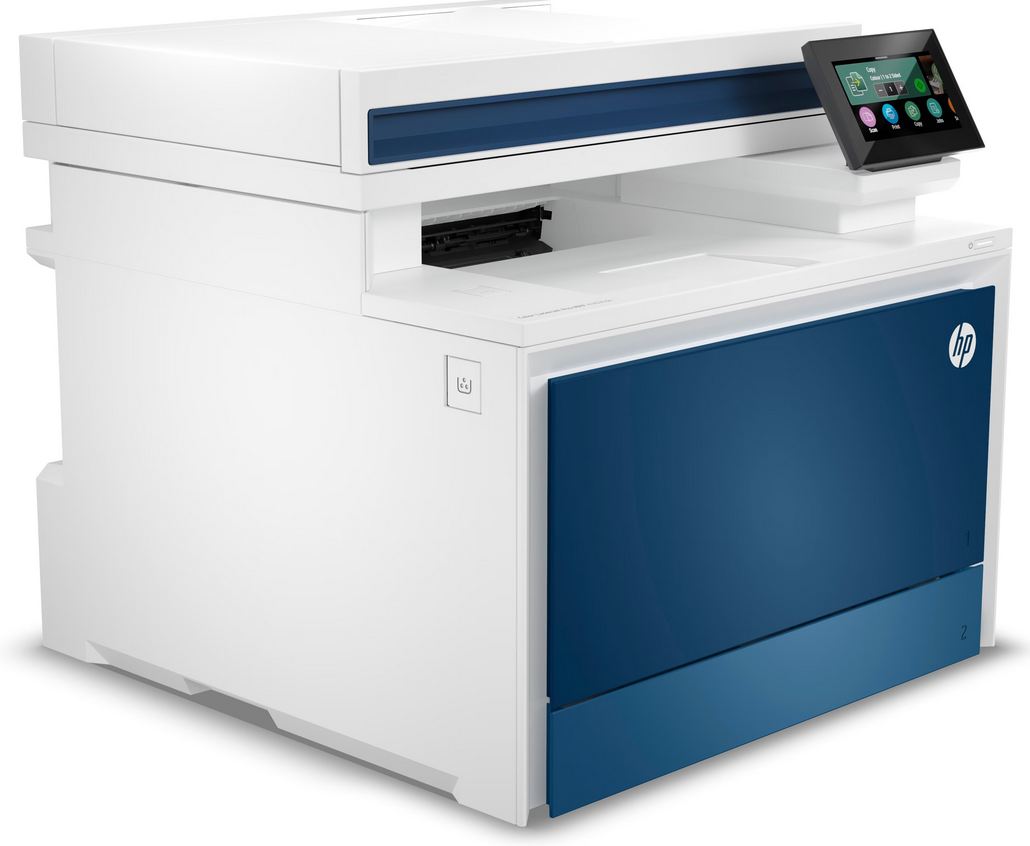

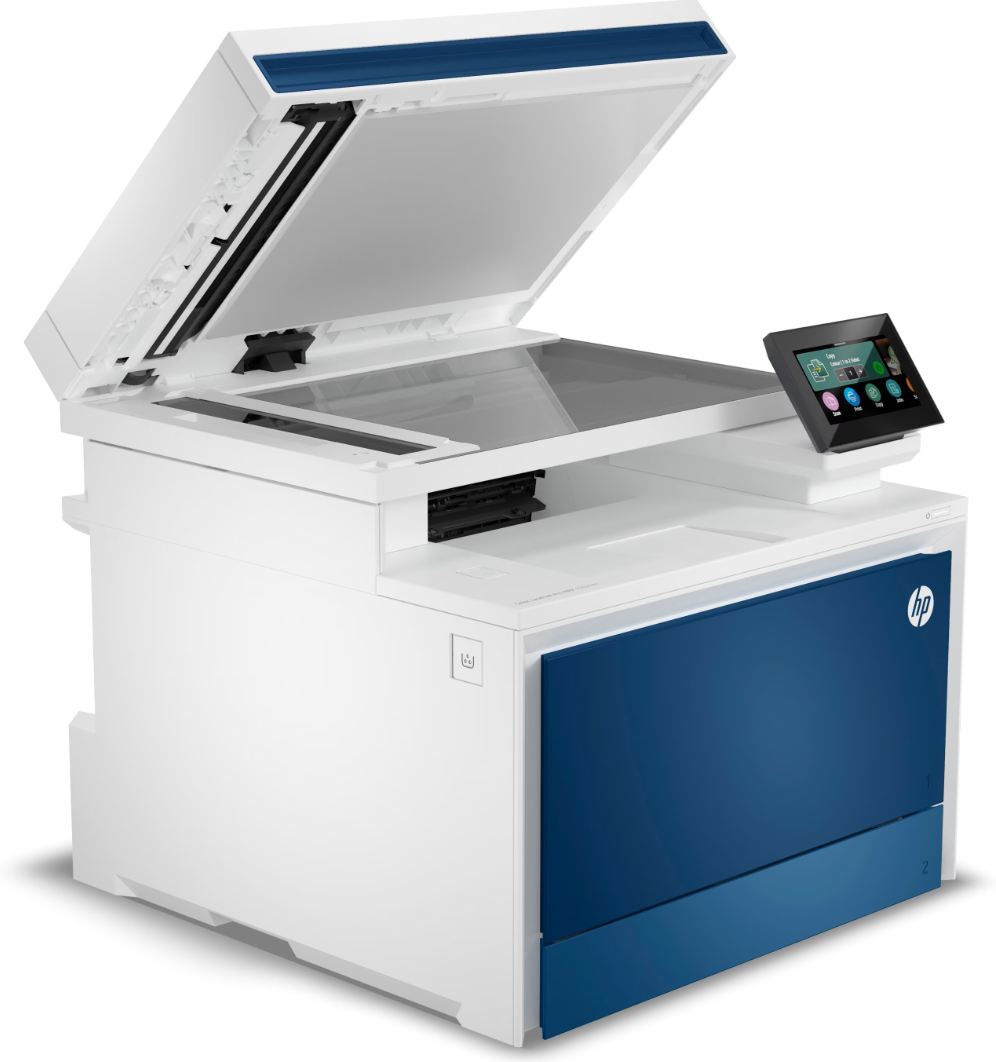

Network all-in-one color laser printer HP Color Laserjet Pro 4302fdn 2025 new printer MFP4302fdn, double sided scanning and printing Toner cartridges : HP 220A	.
Network all-in-one color laser printer HP cm1312nfi Now obsolete because the printer would not take any paper from the paper tray anymore Replaced by MFP4302fdn
Fritz!box 7590 ADSL modem for DSL and Fiber - 200Mbit down / 200 Mbit up Fiber via XS4ALL
Sagem Gigabit modem 1000mbit down / 50mbit up cable internet via Ziggo
Optical Network Termination (ONT) for fiber internet from KPN/xs4all
Netgear GS108 8 port gbit switch
Cisco SLM2008 8 port vlan managed switch
Cisco SLM2008 8 port vlan managed switch
Cisco SLM2008 8 port vlan managed switch

This is a selection of the previous hardware I have used over the years :
Previous motherboards/CPU combinations :

<=== Asus A7V133	<=== AMD Athlon ThunderbirdC 1000 & 1400
<===Asus P5A	<=== K6-2 300
<=== Asus P55T2P4	<== K6-200

To tweak the T2P4 motherboard a lot of info can be found on Kalle's page that I copied from Kalle

Spec's of the iiyama S901GT

With thanks to tomshardware for several of the pictures shown here.
